Soundcraft

Expansion Box to add or remote 16 mic channels

Normally ships next business day from our partner warehouse

Key Features
  • expands ins and outs for all Si Series DigitalMixers
  • 16 Recallable Microphone Pre-Amplifiers
  • 8 outputs
  • connects via Cat 5 or Cat 6 cables
  • rack mounted

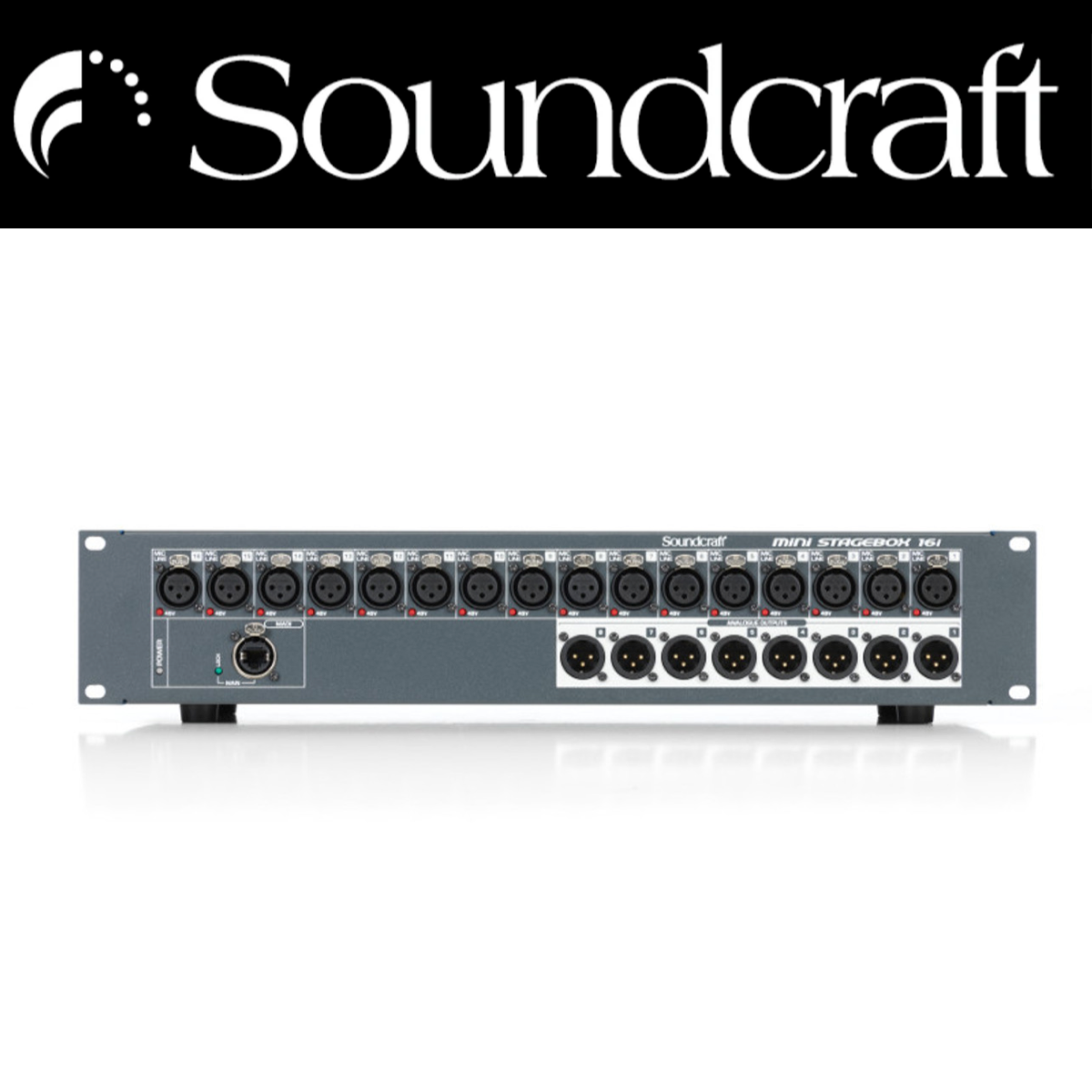

The Mini Stagebox 16i from Soundcraft offers multiple channels of remote controlled I/O for Si Series products—including the Si Impact mixing console—and is well suited for live sound engineers, houses of worship, bands, clubs, and corporate events. The Mini Stagebox requires only 2 RU of rack space, yet provides 16 recallable, high-quality, Studer-designed microphone preamp inputs, and 8 balanced line outputs, all remotely controlled from the console.

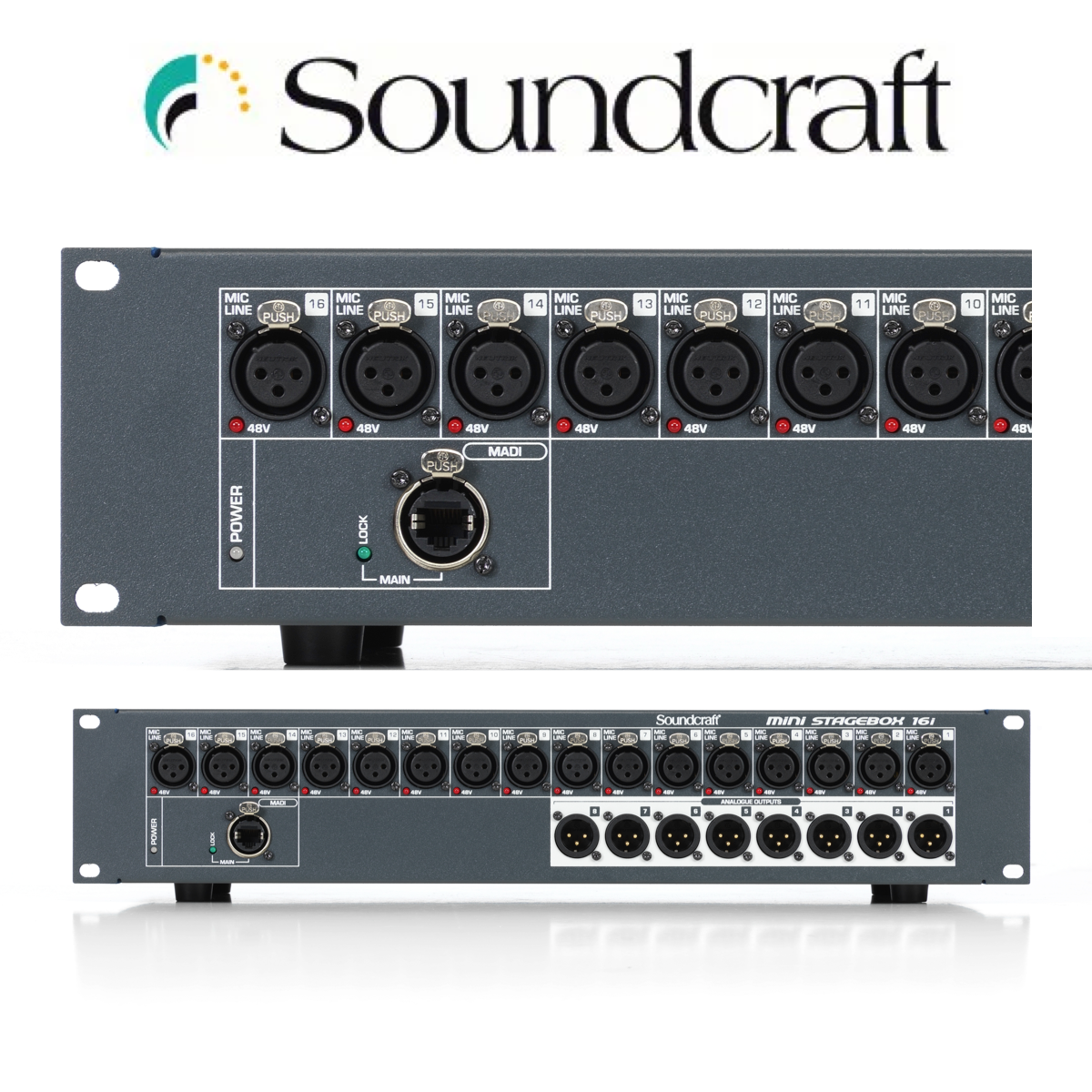

The Mini Stagebox 16i comes fitted with a single MADI over RJ45 connector, eliminating the need for expensive and heavy analog cable snakes for the stage to the front-of-house mixing position. The RJ45/Cat5 connector allows for cable runs up to 328' (100m) between the stage and front-of-house.

Connects to any of the Soundcraft Si Expression, Si Compact, Si Performer, Si Impact Series consoles via a MADI card fitted to the optional card slot
Requires only 2 RU of rack space and provides 16 recallable mic/line inputs and 8 balanced line outputs

What's in the box

  • Soundcraft Mini Stagebox 16i for Si Series Consoles
  • IEC Power Cord
  • Limited 1-Year Warranty on Parts and Labor
UPC: 668705002639

SOUNDCRAFT

(E13z) miniStagebox 16 - 16 Mic 8 returns (Digital Strage Box Preamps)

$ 1,424.04
$ 1,070.00

Soundcraft

Expansion Box to add or remote 16 mic channels

Normally ships next business day from our partner warehouse

Key Features
  • expands ins and outs for all Si Series DigitalMixers
  • 16 Recallable Microphone Pre-Amplifiers
  • 8 outputs
  • connects via Cat 5 or Cat 6 cables
  • rack mounted

The Mini Stagebox 16i from Soundcraft offers multiple channels of remote controlled I/O for Si Series products—including the Si Impact mixing console—and is well suited for live sound engineers, houses of worship, bands, clubs, and corporate events. The Mini Stagebox requires only 2 RU of rack space, yet provides 16 recallable, high-quality, Studer-designed microphone preamp inputs, and 8 balanced line outputs, all remotely controlled from the console.



The Mini Stagebox 16i comes fitted with a single MADI over RJ45 connector, eliminating the need for expensive and heavy analog cable snakes for the stage to the front-of-house mixing position. The RJ45/Cat5 connector allows for cable runs up to 328' (100m) between the stage and front-of-house.

Connects to any of the Soundcraft Si Expression, Si Compact, Si Performer, Si Impact Series consoles via a MADI card fitted to the optional card slot
Requires only 2 RU of rack space and provides 16 recallable mic/line inputs and 8 balanced line outputs

What's in the box

  • Soundcraft Mini Stagebox 16i for Si Series Consoles
  • IEC Power Cord
  • Limited 1-Year Warranty on Parts and Labor
UPC: 668705002639
$ 1,424.04
$ 1,070.00
