Product Description

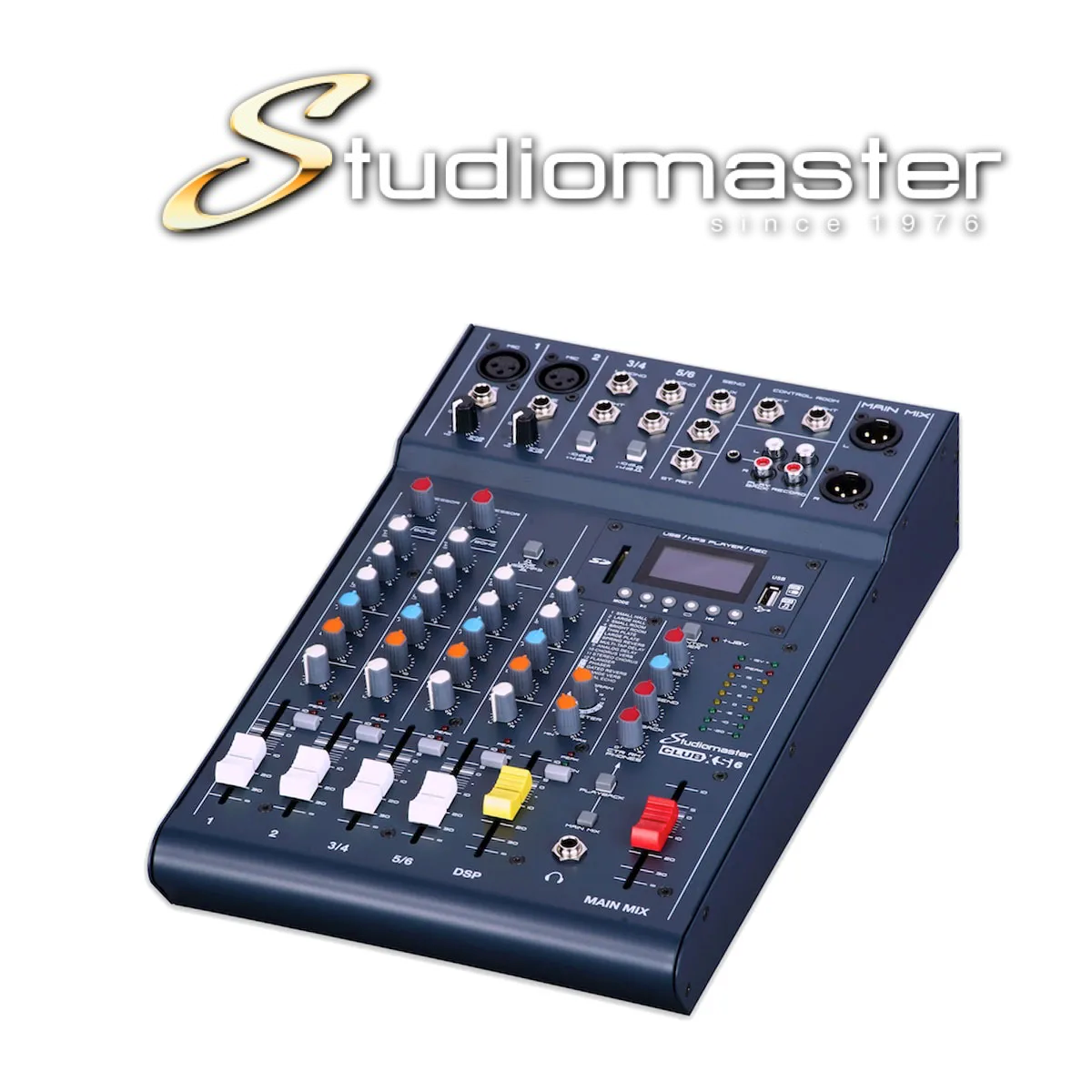

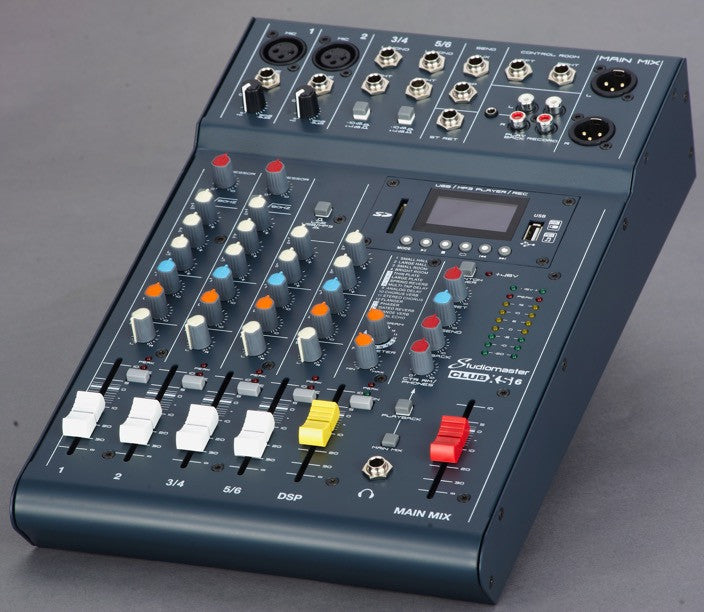

CLUB XS6 6 CHANNEL (2 MIC PREAMPS WITH COMPRESSORS) MIXER

New to the range for 2016 are our CLUB XS range of compact, and portable mixing consoles. Offering all the features and specifications required from mixing consoles at this level, at a great price point. With features such as 3 band EQ, built-in channel compression, DSP effects and a hugely versatile MP3/USB/SD card playback and recording system.

Also available in 8 (4 mic), 10 (6 mic) and 12 (8mic) input models.

The Club XS 6 6 inputs with 2 mic channels and 2 stereo input channels. Power is via an in-built low-noise switch-mode power supply which accepts AC voltages from 100v to 265v.  This unit is supplied with a US plug to IEC cable. No wall wart to loose.

Mic input channels, are fully featured with 3 band EQ, 2 Auxiliaries, balanced mic/line connectors, compressor control.48v phantom power, 60mm ultra smooth faders and a useful channel MUTE switch. Stereo channels differ only with 2 band EQ and no compressor.

Main outputs are balanced XLR, with additional jack outputs available for auxiliaries and control room, and RCA phono record/playback facilities.

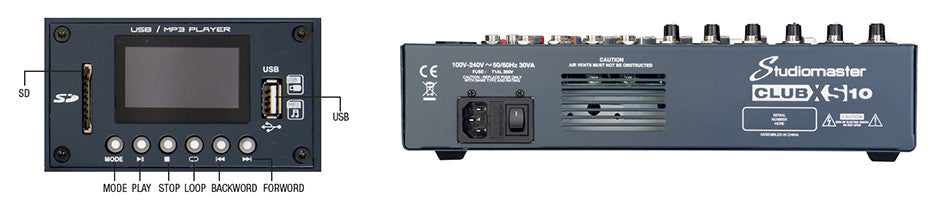

The USB/SD card facility for stereo recording / playback  make the CLUB XS ideal for project home recording or giving the ability to supply interval / backing music to your live performance. To add further practicality to the unit, there is a built in MP3 player and Bluetooth playback facility to give you every opportunity to make your live performance as quick and easy to set-up as possible.

Also included on all CLUB XS models is a high quality 16 program DSP effects unit.

Product Specification

  CLUB XS 6
 Inputs
6
Mic Input channels
2
Stereo Input channels
2
 Gain
Min - Max
Mic
-16dB - -60dB
Line
+10dB - -34dB
 EIN  -100dB
 Frequency response
Mic Channel
 10Hz - 20kHz+1/-3dB
 THD Mic Channel  <=0.1%
 Signal to noise ratio  80dB
 Output Levels Balanced  +26dB Max
 Output Levels Unbalanced  +20dB Max
 Channel EQ
Hi
12kHz
Mid
2.5kHz
Lo
45Hz
 Lo Cut  80Hz
 MP3/USB/SD Audio playback  2 channel playback
 USB/SD Audio recording  2 channel recording from mix output
 Bluetooth Playback  2 channel playback
 DSP Effects  16 presets with adjustable parameter
 Power requirements  100-240V ~ 50/60Hz
 Dimensions (wxhxd)
