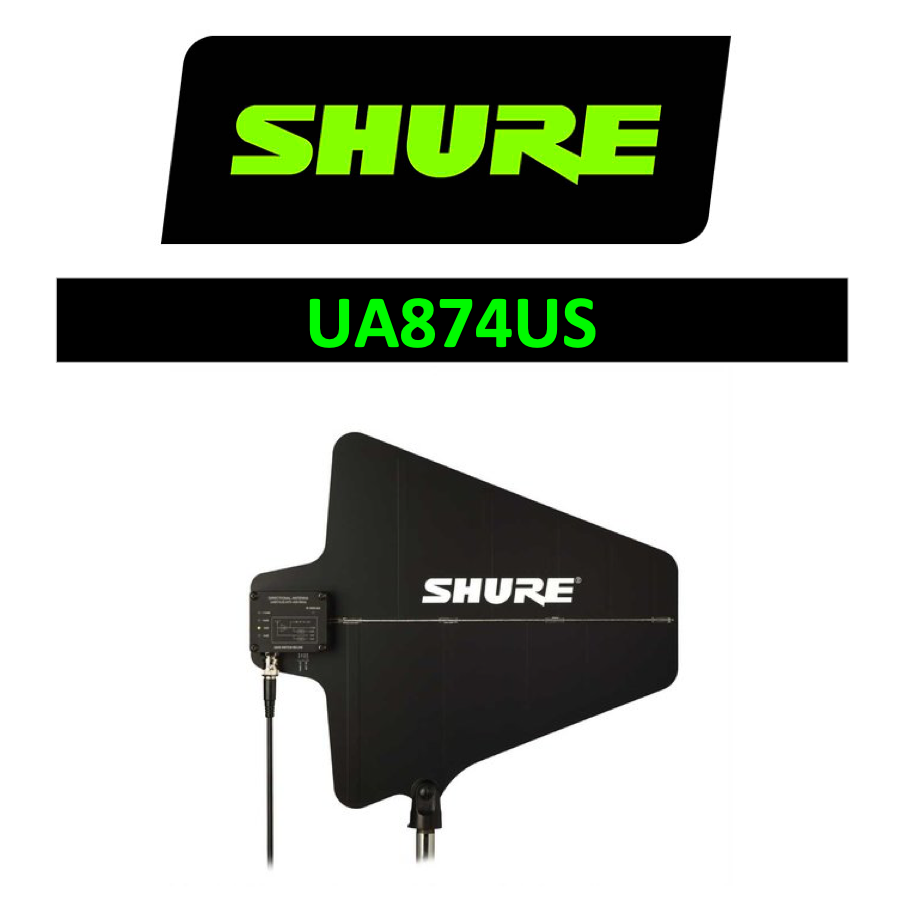

Now you can experience improved wireless reception with Shure's UA874 Antenna. It's a UHF antenna that uses a log periodic dipole array to form a cardioid receiving pattern toward the desired coverage area, achieving greater rejection of RF signals outside the area than standard ½-wave omnidirectional antennas.

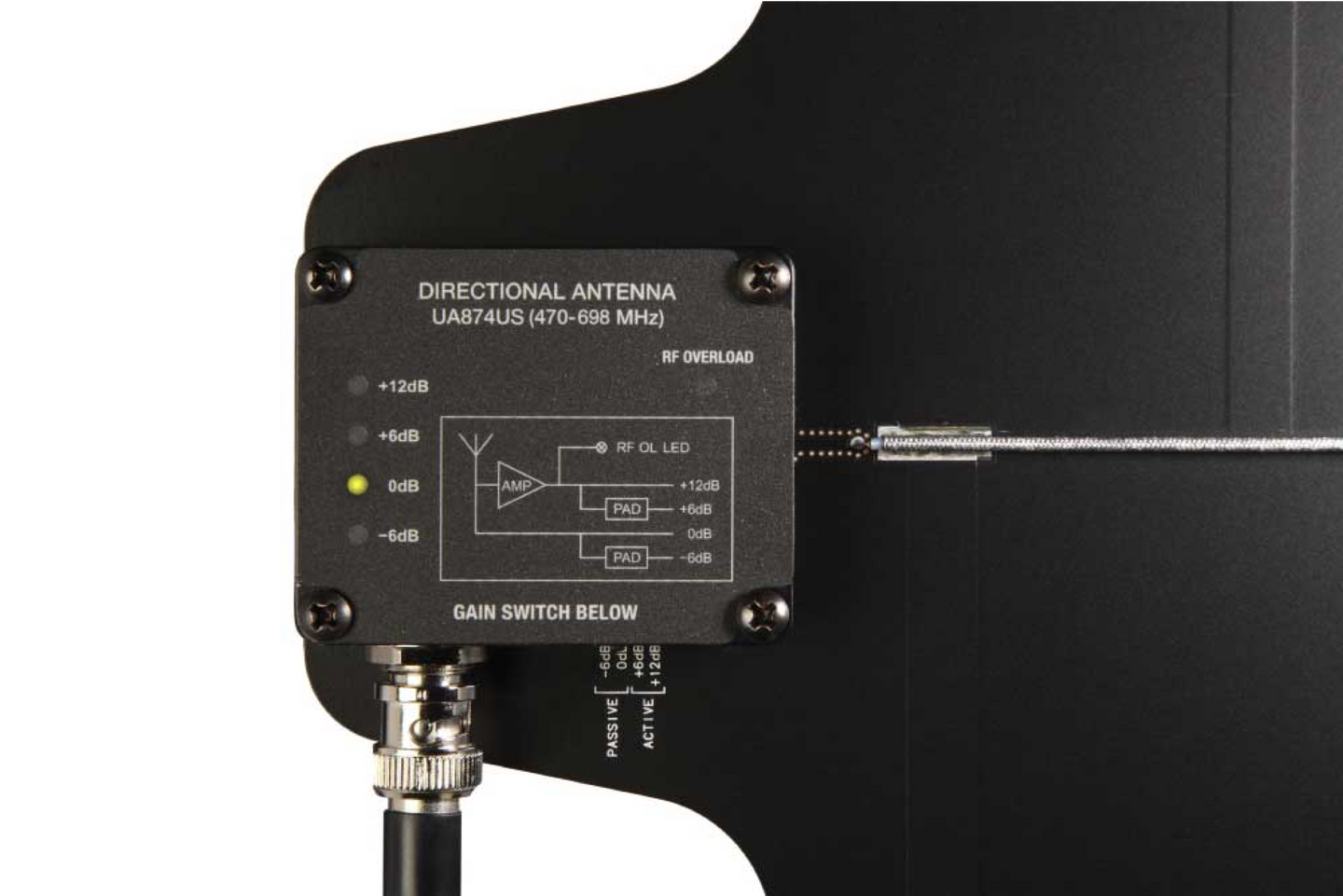

An integrated amplifier with 4 switchable (2 active/2 passive) gain settings compensates for varying degrees of coaxial cable signal loss.
The UA874 can be mounted on a mic stand with the integrated threaded adapter.
Shure UA874 Features:
- Compatible with all Shure wireless receivers and antenna distribution systems that provide 12 V DC bias
- 4-position gain selector switch
- Low-noise signal amplifier that compensates for transmission loss in coaxial cable
- Integrated threaded adapter that mounts easily to microphones stands
- Legendary Shure build quality and reliability
Shure UA874 Specifications:
- RF Frequency Range: 470-698 MHz
- Connector Type: BNC Female
- Impedance: 50 Ohms
- Power Requirements: 10 to 15 V DC bias from coaxial connection, 75 mA
- Reception Pattern: 70°
- Third-order Intercept Point: >30 dBm
- Antenna Gain (On Axis): 7.5 dBi
- Signal Gain +/- 1dB: Switchable
- Active: +12 dB, +6 dB
- Passive: 0dB, -6 dB
- RF Overload LED Threshold: -5 dBm
- Dimensions (H x W x D): 316 x 359 x 36mm
- Weight: 11.2 oz. (317 g)
SAW WA-LPDAREMOTE
- Regular price
- $ 566.00
- Sale price
- $ 404.00
