Shure

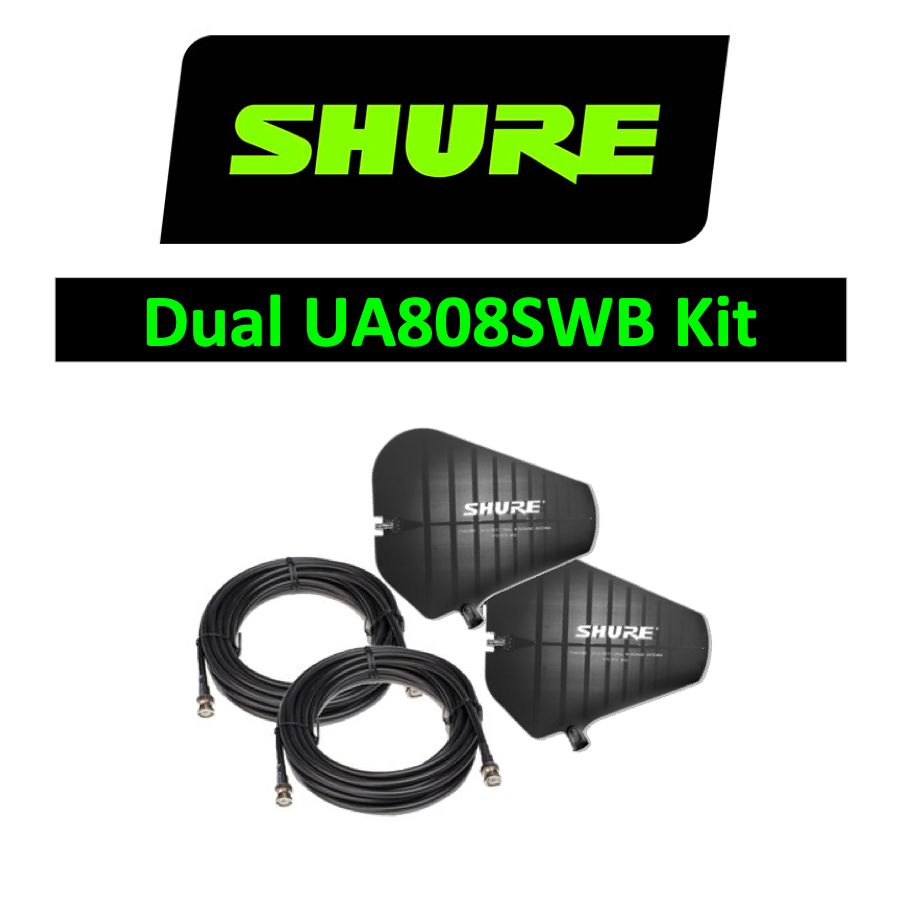

Kit contains:

  • 2x Sgure UA895SEB Passive LPDA paddles
  • 2x RG58 BNC-BNC cables - 25ft

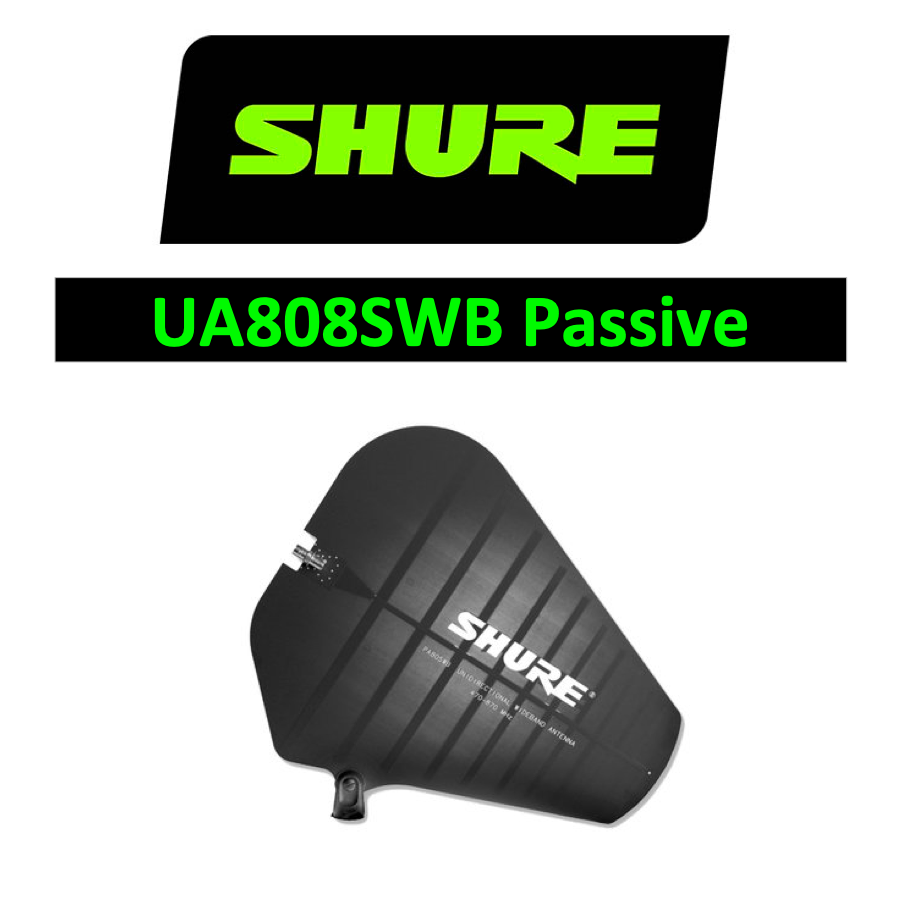

Now you can experience improved wireless reception with Shure's UA805SWB Antenna. It's a UHF antenna that uses a log periodic dipole array to form a cardioid receiving pattern toward the desired coverage area, achieving greater rejection of RF signals outside the area than standard ½-wave omnidirectional antennas.

This is a passive device with 6dB of signal gain by virtue of the LPDA design.

The UA805 can be mounted on a mic stand with the integrated threaded adapter.



Shure UA805 Features:

  • Compatible with all Shure wireless receivers and antenna distribution systems
  • Integrated threaded adapter that mounts easily to microphones stands
  • Legendary Shure build quality and reliability

Shure UA805 Specifications:

  • RF Frequency Range: 470-952 MHz
  • Connector Type: BNC Female
  • Impedance: 50 Ohms
  • Reception Pattern: 70°
  • Third-order Intercept Point: >30 dBm
  • Antenna Gain (On Axis): 6.0 dBi
  • Dimensions (H x W x D): 316 x 359 x 36mm
  • Weight: 11.2 oz. (317 g)

Retail SWA

    Shure

    (C51) Dual PA805SWB LPDA Directional Passive Antenna Paddle UHF Kit with cables

    SKU UA805SWBDual
    $ 899.00
    $ 659.00





    Shure

    Kit contains:

    • 2x Sgure UA895SEB Passive LPDA paddles
    • 2x RG58 BNC-BNC cables - 25ft

    Now you can experience improved wireless reception with Shure's UA805SWB Antenna. It's a UHF antenna that uses a log periodic dipole array to form a cardioid receiving pattern toward the desired coverage area, achieving greater rejection of RF signals outside the area than standard ½-wave omnidirectional antennas.

    This is a passive device with 6dB of signal gain by virtue of the LPDA design.

    The UA805 can be mounted on a mic stand with the integrated threaded adapter.



    Shure UA805 Features:

    • Compatible with all Shure wireless receivers and antenna distribution systems
    • Integrated threaded adapter that mounts easily to microphones stands
    • Legendary Shure build quality and reliability

    Shure UA805 Specifications:

    • RF Frequency Range: 470-952 MHz
    • Connector Type: BNC Female
    • Impedance: 50 Ohms
    • Reception Pattern: 70°
    • Third-order Intercept Point: >30 dBm
    • Antenna Gain (On Axis): 6.0 dBi
    • Dimensions (H x W x D): 316 x 359 x 36mm
    • Weight: 11.2 oz. (317 g)

    Retail SWA
      $ 899.00
      $ 659.00
