PRODUCT WILL USUALLY BE DROP-SHIPPED FROM SENNHEISER

With the 2 x 1:8 active antenna splitter, up to eight receivers (EM 3031) or twin receivers (EM 3032, EM 3532) can be operated with only one pair of diversity antennas. Each diversity section is fitted with a wideband input module which can be exchanged for a selective input module. Due to the built-in antenna boosters, the signals are routed without loss the the connected receivers. The active antenna splitter allows you to make receiver systems with up to 16 channels. Areas of application: y Multi-channel RF installations (fixed or mobile) y Permanent installations in small conference centres and similar venues

  • Specifications RF characteristics / active diversity antenna splitter
    • Antenna splitter: 2 x 1:8, active
    • Frequency range: 470–870 MHz
    • Distribution attenuation: +3/-1 dB
    • Nominal impedance of the inputs/outputs: 50 Ω
    • Connections inputs A/B: BNC sockets
    • Connections outputs A1-A8/B1-B8: BNC sockets
    • Booster supply 12 V, 70 mA max. each, at the inputs A and B: short circuit-proof
  • Overall unit
    • Supply voltage range: nom. 100–240 V AC, 50–60 Hz
    • Power consumption: max. 8 VA
    • Weight: approx. 3 kg
    • Dimensions: 19",1 U
    • Temperature range: -10 to +55 °C

Delivery includes

  • 1 active antenna splitter, 2 x 1:8
  • 1 mains cable y
  • 1 rack-mounting kit
  • 1 set of self-adhesive plastic feet
  • 1 instruction manual

NO ANTENNA CABLES INCLUDED

Retail SeWA  AADA ACTIVE ANTENNA DISTRIBUTION AMPLIFIER

    Sennheiser

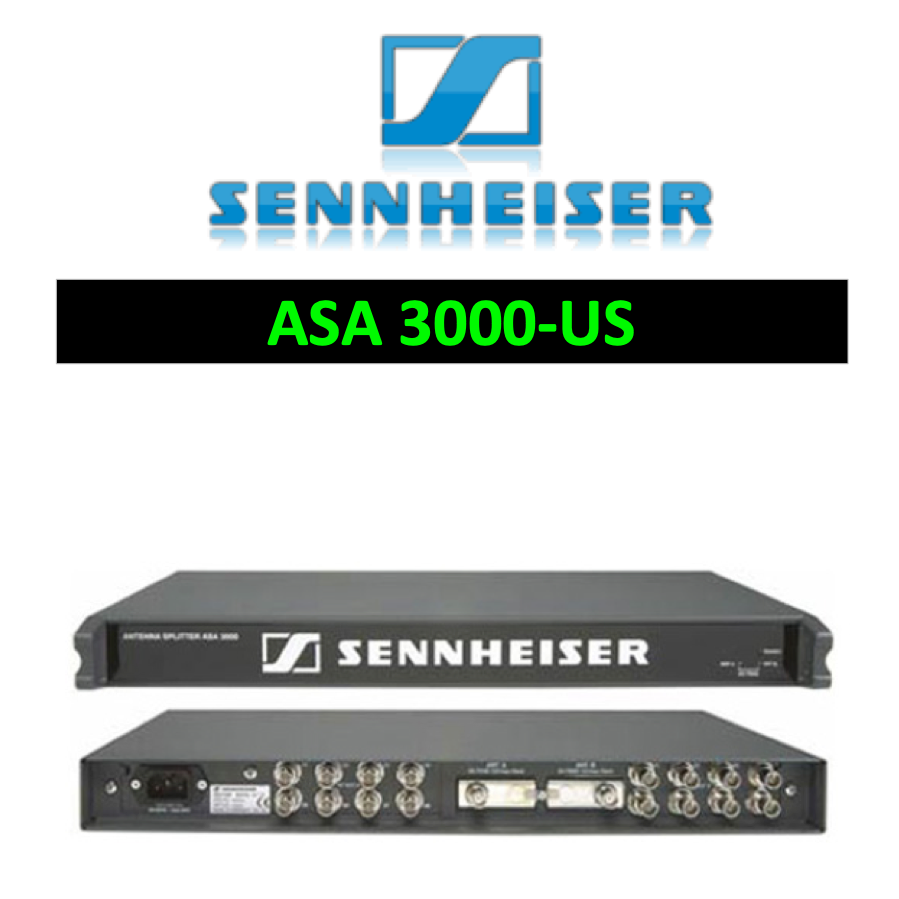

    (C52) Wireless ASA 3000-US 8 way active antenna splitter distributor - NO CABLES

    SKU ASA 3000-US
    $ 2,999.00
    $ 2,149.00
