Normally Ships from Warehouse next business day

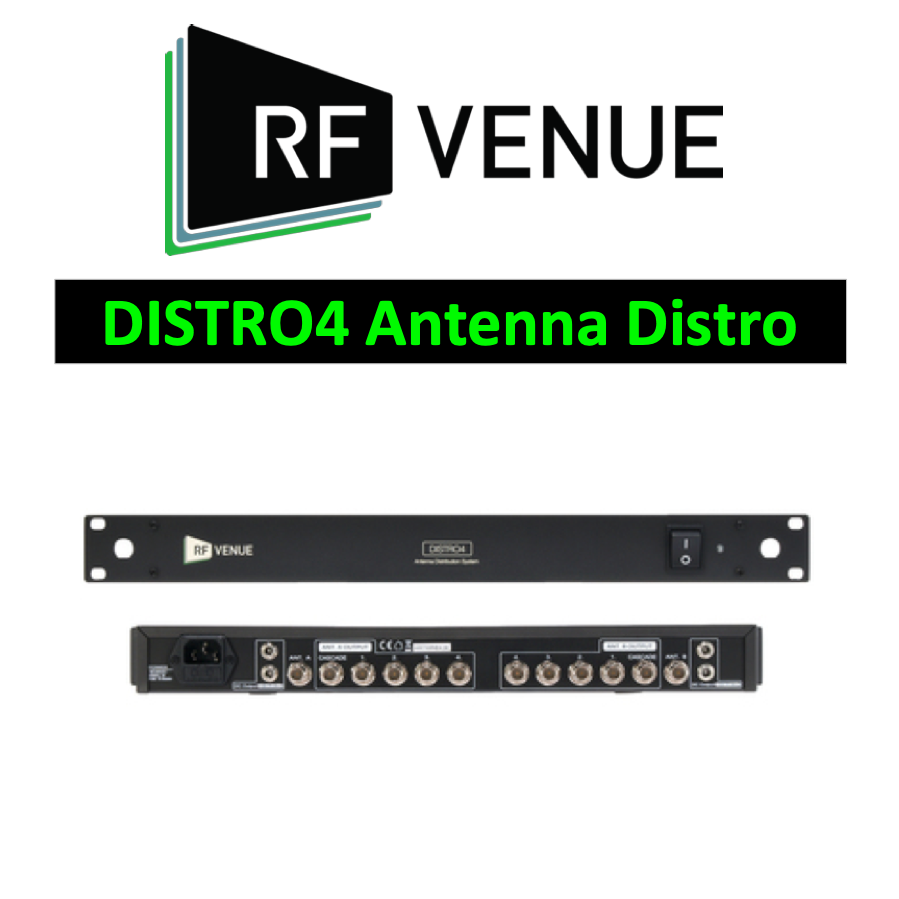

DISTRO4 distributes diversity RF and DC power across four wireless microphone receivers of any brand. A true “distribution amplifier,” DISTRO4 splits signals from two antennas (or one Diversity Fin) connected to the rear panel and amplifies them before delivering the signals to multiple receivers in a rack. An additional cascade port is included for daisy chaining multiple units together to accommodate up to 16 receivers per antenna pair.
DISTRO4 features a 2000 mA internal power supply (no wall wart) and compares to antenna distributors twice its price. It includes all RF and DC power cables needed to connect a 4 channel wireless microphone system as well as cascade to one additional DISTRO4.
Supplied Accessories
- BNC jumpers .......................................... 10X
- DC cables................................................ 4X
- AC cables................................................ 1X
Specifications
- Frequency range .................................... 470-952 MHz
- RF output level (gain) ............................. 3 dB (±2 dB)
- Cascade output level.............................. 0 dB ~ +2 dB
- Output connection isolation................... ≥ 25 dB
- Third order intercept point .................... 24 dBm
- Impedance .............................................. 50Ω
- Power consumption ............................... 60 W
- Input AC voltage ..................................... 100~240 V switching
- DC over coax (to external antennas) ..... 12-14 VDC
- Output DC voltage (to receiver jacks).... +12 V
- Output DC connectors............................ 5.5mm OD, 2.1mm ID
- Dimensions............................................. 480(W) X 45(H) X 250(D)mm (19 x 1.75 x 10")
- Weight..................................................... 2.15 Kgs (5lbs)
Retail RFVWA AADA ACTIVE ANTENNA DISTRIBUTION AMPLIFIER
- Regular price
- $ 599.00
Normally Ships from Warehouse next business day
DISTRO4 distributes diversity RF and DC power across four wireless microphone receivers of any brand. A true “distribution amplifier,” DISTRO4 splits signals from two antennas (or one Diversity Fin) connected to the rear panel and amplifies them before delivering the signals to multiple receivers in a rack. An additional cascade port is included for daisy chaining multiple units together to accommodate up to 16 receivers per antenna pair.
DISTRO4 features a 2000 mA internal power supply (no wall wart) and compares to antenna distributors twice its price. It includes all RF and DC power cables needed to connect a 4 channel wireless microphone system as well as cascade to one additional DISTRO4.
Supplied Accessories
- BNC jumpers .......................................... 10X
- DC cables................................................ 4X
- AC cables................................................ 1X
Specifications
- Frequency range .................................... 470-952 MHz
- RF output level (gain) ............................. 3 dB (±2 dB)
- Cascade output level.............................. 0 dB ~ +2 dB
- Output connection isolation................... ≥ 25 dB
- Third order intercept point .................... 24 dBm
- Impedance .............................................. 50Ω
- Power consumption ............................... 60 W
- Input AC voltage ..................................... 100~240 V switching
- DC over coax (to external antennas) ..... 12-14 VDC
- Output DC voltage (to receiver jacks).... +12 V
- Output DC connectors............................ 5.5mm OD, 2.1mm ID
- Dimensions............................................. 480(W) X 45(H) X 250(D)mm (19 x 1.75 x 10")
- Weight..................................................... 2.15 Kgs (5lbs)
Retail RFVWA AADA ACTIVE ANTENNA DISTRIBUTION AMPLIFIER
- Regular price
- $ 599.00
