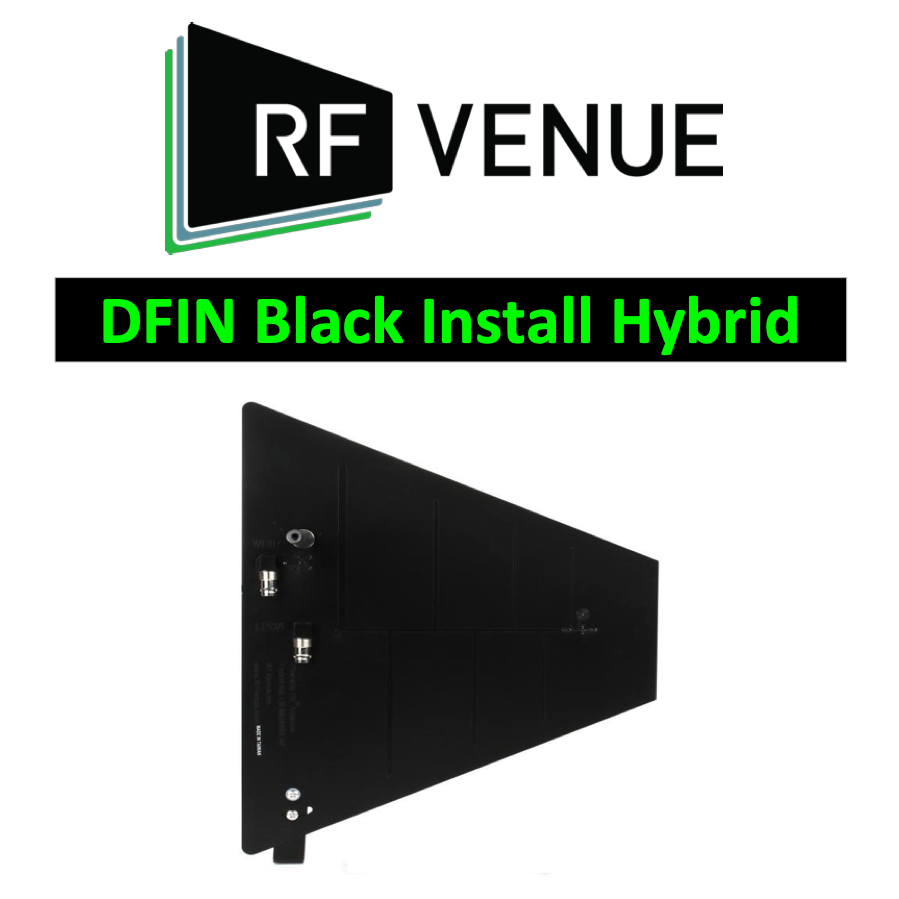

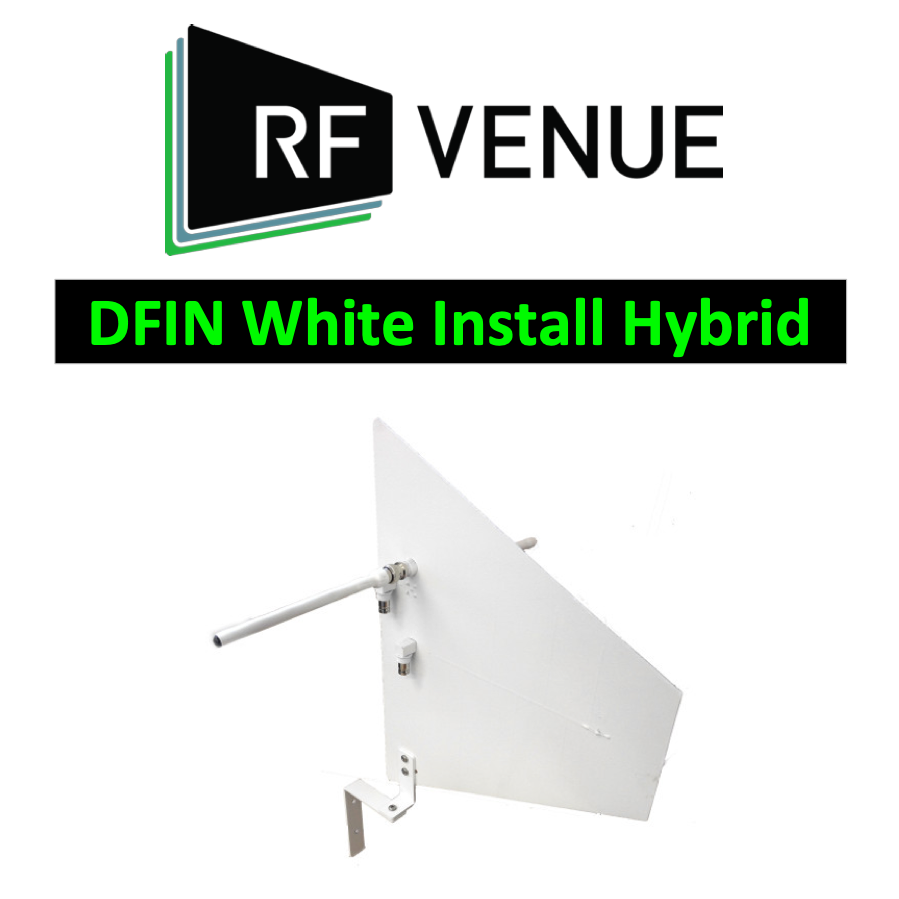

Polarization Diversity Antenna DIVERSITY FIN™ The Diversity Fin Antenna is a multi-purpose antenna designed to be used with wireless microphone systems and other UHF receivers incorporating dual branch diversity reception, and comprises orthogonal directional LPDA and bi-directional dipole elements in order to eliminate mulit-path fade. One element captures vertically polarized waves, and the other horizontally polarized waves—achieving optimal polarization diversity reception and improving signal constancy in indoor and reflective environments.

Connect two receiver (or antenna distributor) branches to the Diversity Fin via coaxial cables (not supplied).

The Diversity Fin has found widespread adoption across multiple pro audio segments for its performance, convenience, space, and cost benefits.

Electrical
  • Operating frequency .............................. 470–698 MHz Bandwidth............................................... 228 MHz
  • Average return loss ............................... -9.4 dB
  • Impedance .............................................. 50Ω LPDA
  • Beam width............................................. 140° azimuth
  • F/B ratio.................................................. -8 dB
  • F/S ratio .................................................. -5 dB
  • Gain......................................................... 5 dBd
  • Dipole Beam width................................... 100° azimuth
  • F/B ratio.................................................. -5 dB
  • F/S ratio .................................................. -13 dB
  • Gain......................................................... 1.8 dBd

Physical

  • Length..................................................... 300mm
  • Height...................................................... 370mm
  • Weight..................................................... 454g
  • Mount threads ........................................ 1/4-20, 3/8-16, 5/8-27
  • Operating temperature.......................... -23°C–54°C
  • Color ....................................................... Black or white
  • Connector(s)........................................... (2) BNC female

Retail RFVWA  WA-LPDAREMOTE

      RF Venue

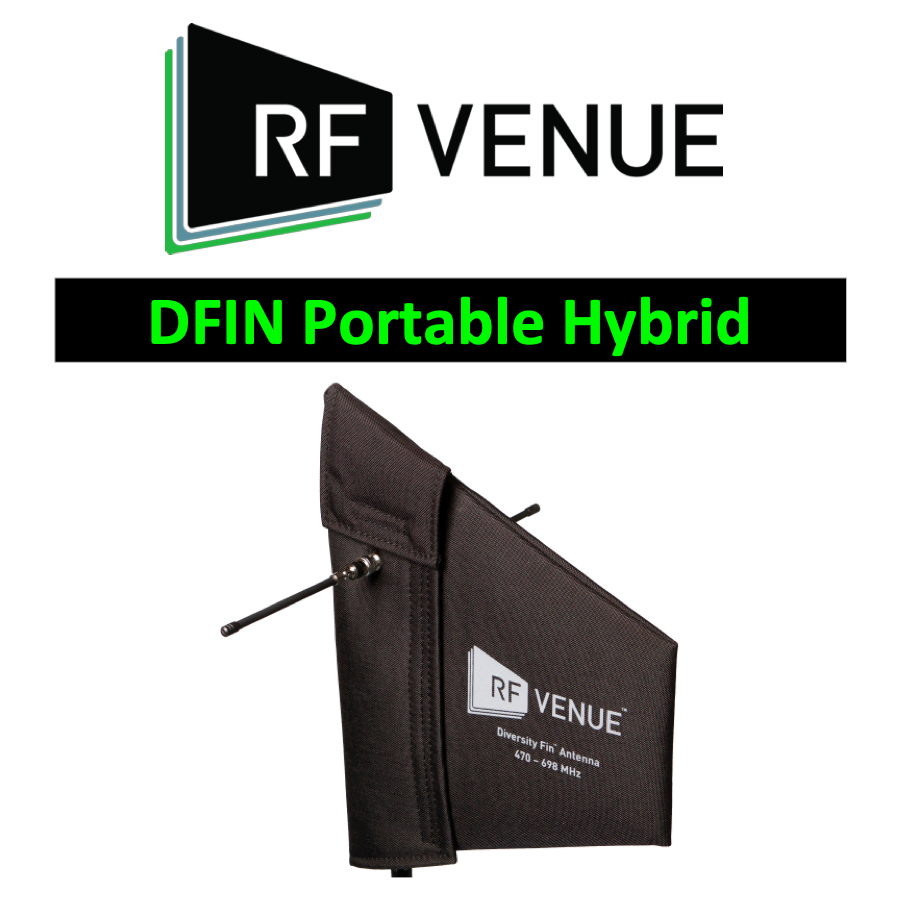

      (C55) RF Venue Wireless DFIN passive wideband LPDA/Dipole antenna 470-698MHz

      SKU DFIN-Portable
      $ 649.00

      Polarization Diversity Antenna DIVERSITY FIN™ The Diversity Fin Antenna is a multi-purpose antenna designed to be used with wireless microphone systems and other UHF receivers incorporating dual branch diversity reception, and comprises orthogonal directional LPDA and bi-directional dipole elements in order to eliminate mulit-path fade. One element captures vertically polarized waves, and the other horizontally polarized waves—achieving optimal polarization diversity reception and improving signal constancy in indoor and reflective environments.

      Connect two receiver (or antenna distributor) branches to the Diversity Fin via coaxial cables (not supplied).

      The Diversity Fin has found widespread adoption across multiple pro audio segments for its performance, convenience, space, and cost benefits.

      Electrical
      • Operating frequency .............................. 470–698 MHz Bandwidth............................................... 228 MHz
      • Average return loss ............................... -9.4 dB
      • Impedance .............................................. 50Ω LPDA
      • Beam width............................................. 140° azimuth
      • F/B ratio.................................................. -8 dB
      • F/S ratio .................................................. -5 dB
      • Gain......................................................... 5 dBd
      • Dipole Beam width................................... 100° azimuth
      • F/B ratio.................................................. -5 dB
      • F/S ratio .................................................. -13 dB
      • Gain......................................................... 1.8 dBd

      Physical

      • Length..................................................... 300mm
      • Height...................................................... 370mm
      • Weight..................................................... 454g
      • Mount threads ........................................ 1/4-20, 3/8-16, 5/8-27
      • Operating temperature.......................... -23°C–54°C
      • Color ....................................................... Black or white
      • Connector(s)........................................... (2) BNC female

      Retail RFVWA  WA-LPDAREMOTE
          $ 649.00
          Color/Function:

          Frequently Bought Together

          Total price $ 873.00

          Product Description

          Polarization Diversity Antenna DIVERSITY FIN™ The Diversity Fin Antenna is a multi-purpose antenna designed to be used with wireless microphone systems and other UHF receivers incorporating dual branch diversity reception, and comprises orthogonal directional LPDA and bi-directional dipole elements in order to eliminate mulit-path fade. One element captures vertically polarized waves, and the other horizontally polarized waves—achieving optimal polarization diversity reception and improving signal constancy in indoor and reflective environments.

          Connect two receiver (or antenna distributor) branches to the Diversity Fin via coaxial cables (not supplied).

          The Diversity Fin has found widespread adoption across multiple pro audio segments for its performance, convenience, space, and cost benefits.

          Electrical
          • Operating frequency .............................. 470–698 MHz Bandwidth............................................... 228 MHz
          • Average return loss ............................... -9.4 dB
          • Impedance .............................................. 50Ω LPDA
          • Beam width............................................. 140° azimuth
          • F/B ratio.................................................. -8 dB
          • F/S ratio .................................................. -5 dB
          • Gain......................................................... 5 dBd
          • Dipole Beam width................................... 100° azimuth
          • F/B ratio.................................................. -5 dB
          • F/S ratio .................................................. -13 dB
          • Gain......................................................... 1.8 dBd

          Physical

          • Length..................................................... 300mm
          • Height...................................................... 370mm
          • Weight..................................................... 454g
          • Mount threads ........................................ 1/4-20, 3/8-16, 5/8-27
          • Operating temperature.......................... -23°C–54°C
          • Color ....................................................... Black or white
          • Connector(s)........................................... (2) BNC female

          Retail RFVWA  WA-LPDAREMOTE
