We specialize in building Easily Transportable Wireless Systems For Theatre or Performance

NB: All Rack'D systems are built to order and take 2-3 weeks to complete ready for shipping

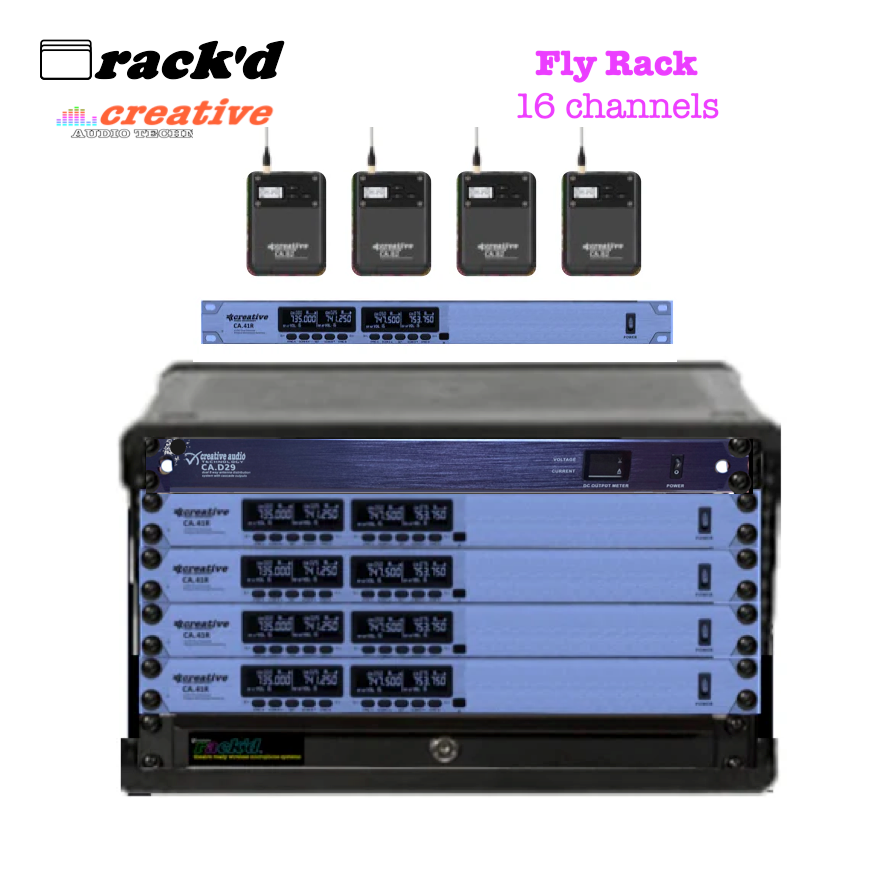

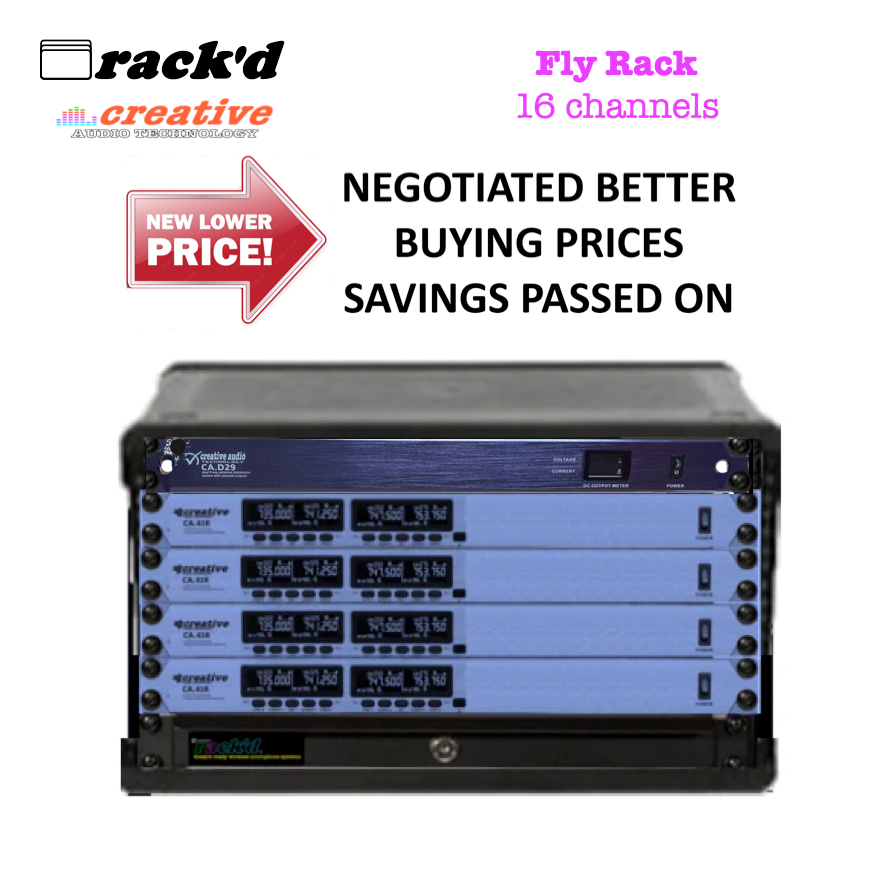

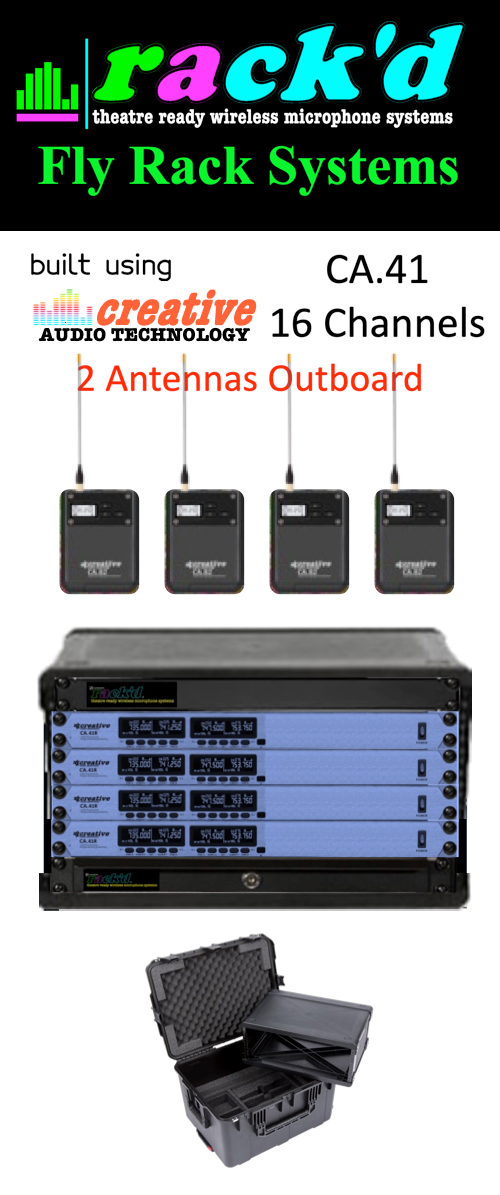

Our Rack'D FLY RACK 16 channel Creative Audio CA.41 UHF system is built around 4x Creative Audio CA.41 quad channel full width 1u rack receivers with a CA.D29 dual 5 way antenna distribution unit so that everything can be run from just 2 antennas, and 16xCA.B2 (metal)  transmitter bodypacks  - built into an SKB 3i-2317M124 Rack in a Rolling Case.

Our CA.41 systems were designed and built to match the specifications of the Shure SLX and Sennheiser ew100 systems.  As a result they are the least expensive quality analog UHF systems currently available.

Our system uses our active Creative Audio CA.D25 dual  5 way(5 way plus cascade out to link to anther rack) antenna  distribution system so the whole system runs on just 2 x 1/2 wave whip antennas.

We include 10 bodymics brand Broadway BLF4 lavalier/hairline microphone elements (yep 2 spares, cause we know one will be wrecked at the worst possible time - you can upgrade to other mic types.

EQUIVALENT PARTS LIST:

OTHER PARTS WE INCLUDE:

Internet cost of major components - receivers, transmitters, mics, antenna distros and case is around $7,000

If you purchased all the items including internal wiring, hardware etc it could cost around $9,100, but we are charging just $6000 ready to use- around $1,000 less than cost of major items plus the labor to unpack, assemble, test and ship, and then we include the following:

• tailored length dc and antenna cabling for our TidyRack(TM) look - no more rats nests

• assembly - put everything into the rack, cable it and test it
• order and gather all the necessary parts
• unpack everything
• assemble the SLX4D4 receivers - add rack ears/joiners
• unpack the SKB fly rack and prep for use
• bolt the BLX4R receivers into rack
• mount the active antenna distributor and cable
• fit Antenna Panel
• connect the XLR looms to each receiver and anchor to rack
• connect power and antenna cables between units
• attach channel numbers to each receiver and each transmitter
• select 8x frequencies that will "play nice" together at your zip code
• program these frequencies into the receivers
• sync the transmitters to it's matching receiver
• connect the XLR outputs into a test sound system
• unpack the 10 microphones, connect each to a transmitter , and test that each microphone, transmitter and receiver works as specifies
• repack for shipping
• TOTAL TIME ABOUT 8 HOURS

NO WALL WARTS:

Our CA.D25 antenna distributor plugs directly into mains power!

Select:

OPTIONAL EARSET MICROPHONE TYPE:

BE4V: 3/16" Omni Easy Fit Sliding Boom Virtually Unbreakable Boom with Fixed Cable

DEF3V: 1/10" "Grain of Rice" Omni - Easy Fit Sliding Boom Virtually Unbreakable Boom with Field Replaceable Cable

DEF3S: 1/10" "Grain of Rice" Omni - Countryman style with Field Replaceable Cable

BMRD BMSW BMRDSW BMRDSB R'D-FLY
