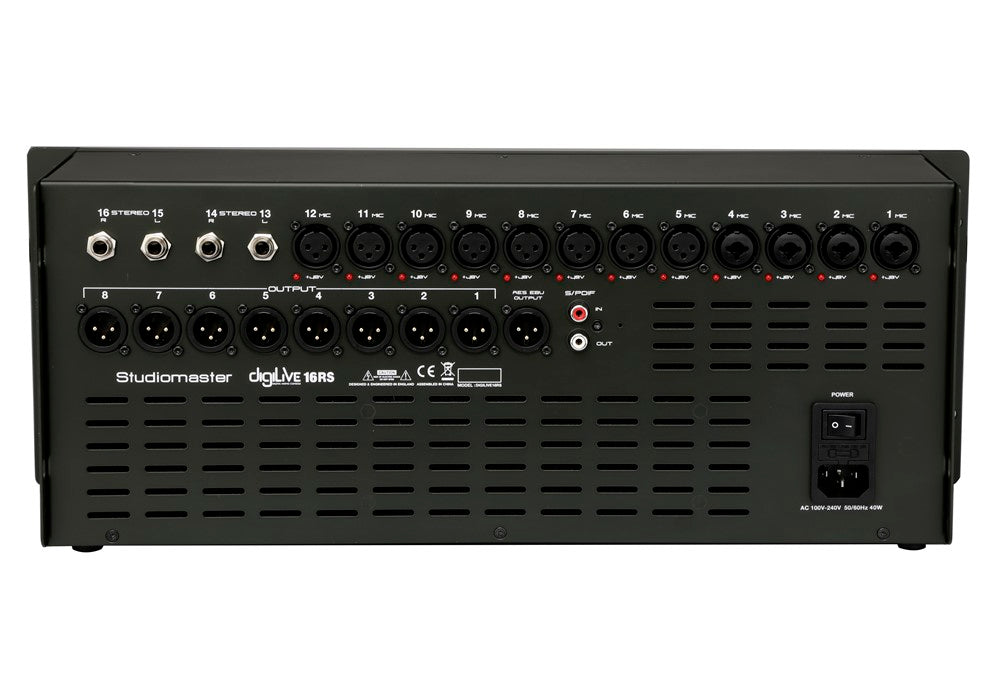

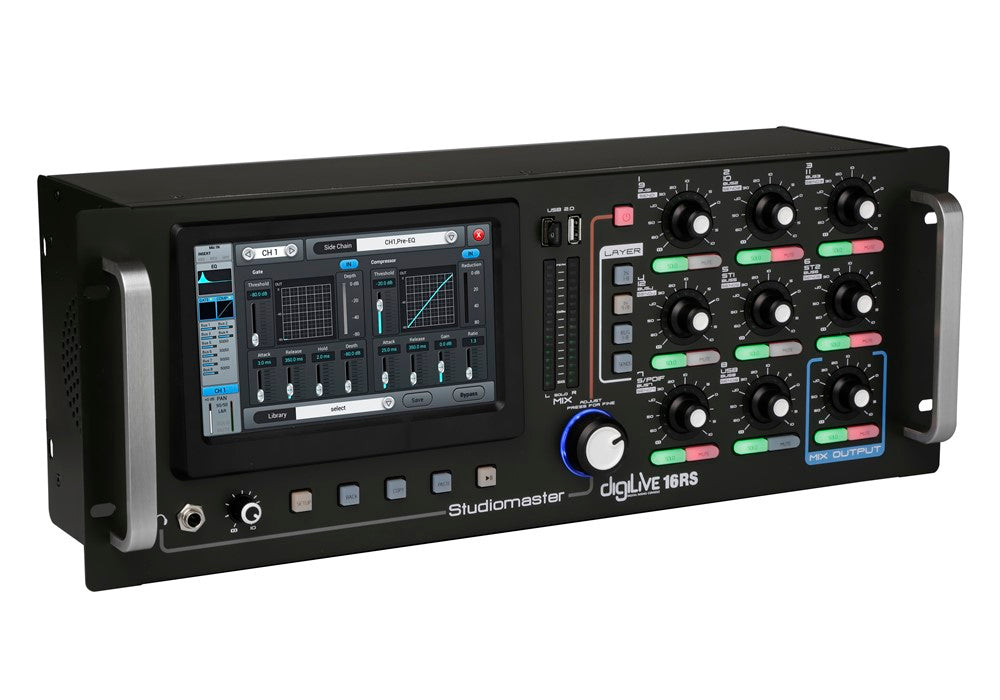

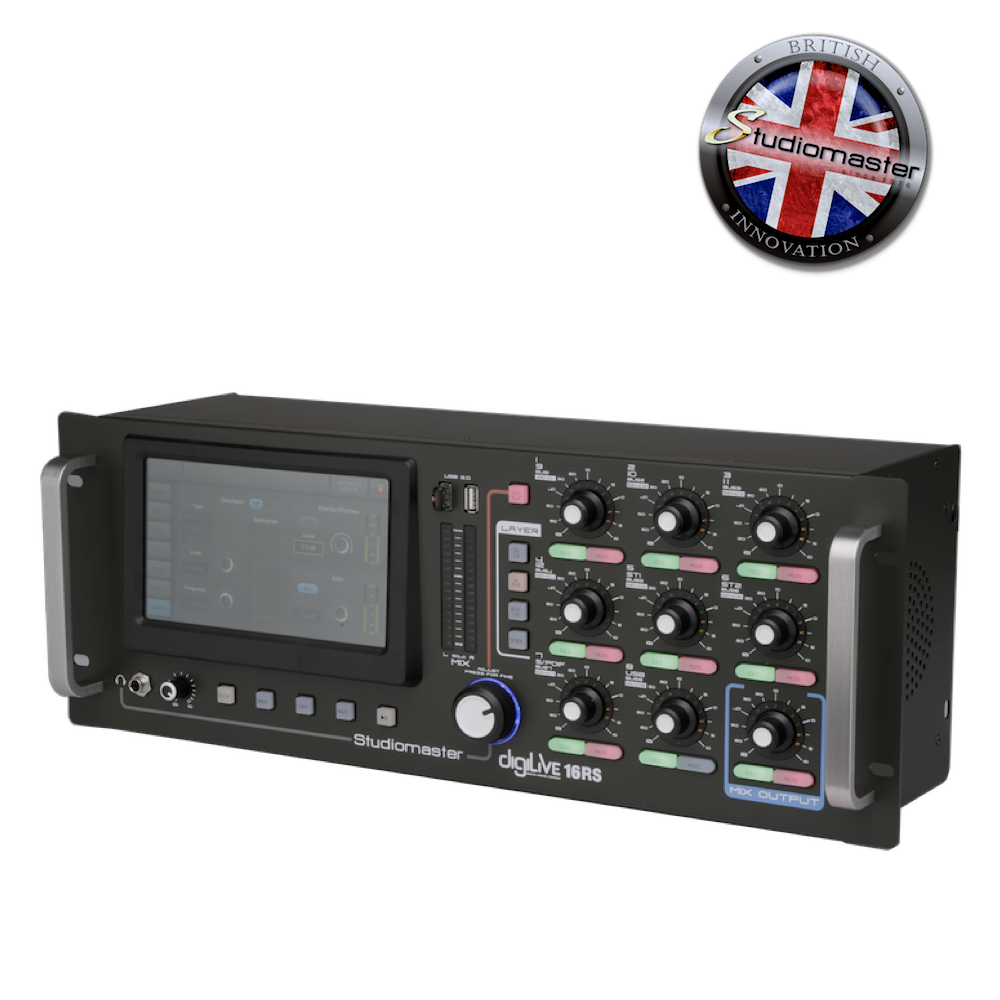

DIGILIVE 16RS - DIGITAL 16 CHANNEL MIXER (12 MIC PREAMPS)
Small rackmount touch screen control digital mixer with iPad control
Product Features
- 16 input with 16 internal busses
- 12 digital gain mic input channels
- 2 stereo inputs
- 8 configurable smart outputs
- 7″ high resolution touch screen
- Ultra compact unit size
- Advanced hybrid user interface
- Full iOS Tablet control
Product Specification
Mic Inputs: 12 (8x XLR / 4x Combo XLR)
Stereo Inputs: 2
Master Output: 2 (Left/Right balanced XLR)
Smart Outputs: 6 (assignable balanced XLR)
Internal busses: 16
Stage monitor: 1 TRS Jack output
Headphone: 1 TRS Jack output
Screen: 7″ high definition touch screen
Operation system: Android system
Network: Yes, via included WiFi module
Remote control: iPad iOS via ‘Digilive Blackbox’ app
Sample Frequency: 48 KHz
AD/DA: 192 KHz, 24-bit
DSP: 40 bit float point, SHARC processor
Effects: up to 8 assignable effect modules
AES/EBU: Output XLR
S/PDIF: Input / Output (RCA Phono)
USB Interface: 2 for playback/recording, scene/setting storage and system updates
Power Supply: 90-240V ~ 50/60Hz IEC power supply
STUDIOMASTER
(E14) DigiLive16RS 12 mic channels, 2 stereo, Digital Mixer with Memory Scenes
- Regular price
- $ 1,939.00
- Sale price
- $ 1,198.00
DIGILIVE 16RS - DIGITAL 16 CHANNEL MIXER (12 MIC PREAMPS)
Small rackmount touch screen control digital mixer with iPad control
Product Features
- 16 input with 16 internal busses
- 12 digital gain mic input channels
- 2 stereo inputs
- 8 configurable smart outputs
- 7″ high resolution touch screen
- Ultra compact unit size
- Advanced hybrid user interface
- Full iOS Tablet control
Product Specification
Mic Inputs: 12 (8x XLR / 4x Combo XLR)
Stereo Inputs: 2
Master Output: 2 (Left/Right balanced XLR)
Smart Outputs: 6 (assignable balanced XLR)
Internal busses: 16
Stage monitor: 1 TRS Jack output
Headphone: 1 TRS Jack output
Screen: 7″ high definition touch screen
Operation system: Android system
Network: Yes, via included WiFi module
Remote control: iPad iOS via ‘Digilive Blackbox’ app
Sample Frequency: 48 KHz
AD/DA: 192 KHz, 24-bit
DSP: 40 bit float point, SHARC processor
Effects: up to 8 assignable effect modules
AES/EBU: Output XLR
S/PDIF: Input / Output (RCA Phono)
USB Interface: 2 for playback/recording, scene/setting storage and system updates
Power Supply: 90-240V ~ 50/60Hz IEC power supply
- Regular price
- $ 1,939.00
- Sale price
- $ 1,198.00
