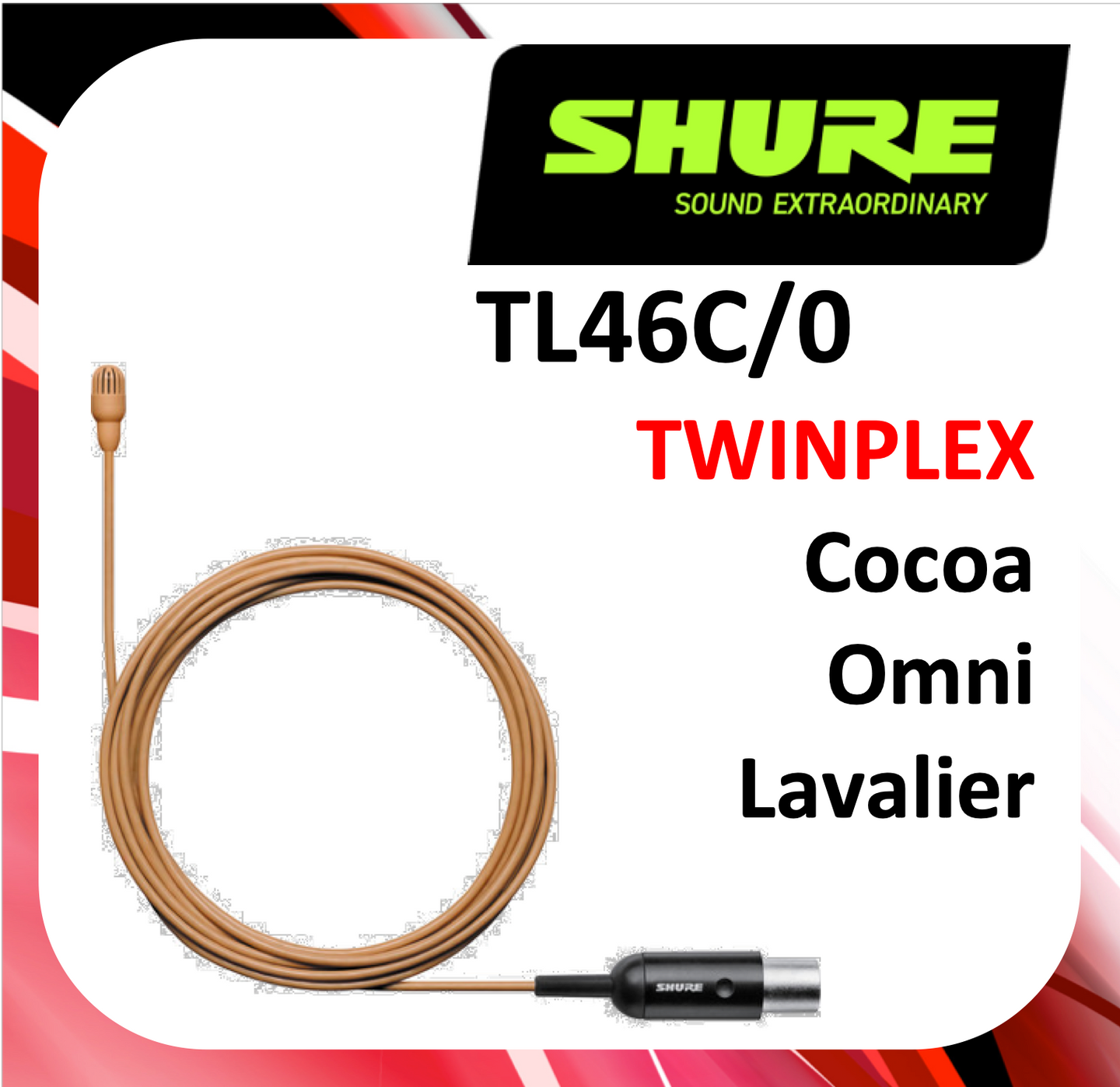

Sweat and moisture won't stop your signal when you use the cocoa Shure TwinPlex TL46 omnidirectional lavalier microphone as your transducer of choice. This ultralightweight mic boasts a patent-pending, dual-diaphragm condenser capsule with an omnidirectional polar pattern, yielding full, natural tone and consistent off-axis response along with low self-noise and wide dynamic range. Plus, the swappable frequency caps incorporate a superhydrophobic nanoscopic coating to eliminate sweat-outs and signal drops caused by perspiration.

The TwinPlex TL46 remains easy to conceal while offering the sonic performance of mics with much larger diaphragms. Its high sensitivity produces a high signal-to-noise ratio with 8 to 10 dB of additional output level. The paintable, medical-grade, 1.6mm diameter cable resists kinks, maintains flexibility, and uses a redundant ground for enhanced shielding. The cable end is terminated with a 3-pin LEMO connector for compatibility with an array of wireless transmitters.



Lightweight and easily concealed for use in theater, broadcast, and speech applications
Patent-pending, dual-diaphragm design yields twice the surface area of other subminiature microphones for pristine, natural response, and robust low frequencies
Improved off-axis consistency produces accurate reproduction regardless of vocal source position or movement
Low self-noise of 24 dBA and wide dynamic range of 110 dB for cleaner audio production
High sensitivity produces 8 to 10 dB of additional output level, and contributes to a high signal-to-noise ratio
Interchangeable sweat- and moisture-resistant frequency caps prevent sweat-outs due to an invisible superhydrophobic nanoscopic coating
Paintable 1.6mm diameter cable resists memory effect and kinks
Dual-redundant ground in cable serves as secondary shield for longevity
Includes three flat-response frequency caps and two presence-response frequency caps

Shure TL46 Specs

Microphone
Sound Field Mono
Operating Principle Pressure Operated
Capsule Electret Condenser
Polar Pattern Omnidirectional
Performance
Frequency Range 20 Hz to 20 kHz
Maximum SPL 134 dB SPL
Sensitivity -37 dBV/Pa at 1 kHz
Dynamic Range 110 dB
Signal-to-Noise Ratio 70 dB
Equivalent Noise Level 24 dB A-Weighted
Connectivity
Output Connector Select
Cable Length 5.5' / 1.68 m
Power
Operating Voltage 5 V
Operating Current Consumption 240 µA
Physical
Length 0.53" / 13.5 mm
Diameter 0.22" / 5.6 mm
Weight 0.42 oz / 12 g

    Shure

    (A11) Shure TL46 Micro "TwinPlex" Dual Element Lavalier Omni Condenser

    SKU TL46B/O-MTQG
    $ 499.00
    $ 399.00

    Sweat and moisture won't stop your signal when you use the cocoa Shure TwinPlex TL46 omnidirectional lavalier microphone as your transducer of choice. This ultralightweight mic boasts a patent-pending, dual-diaphragm condenser capsule with an omnidirectional polar pattern, yielding full, natural tone and consistent off-axis response along with low self-noise and wide dynamic range. Plus, the swappable frequency caps incorporate a superhydrophobic nanoscopic coating to eliminate sweat-outs and signal drops caused by perspiration.

    The TwinPlex TL46 remains easy to conceal while offering the sonic performance of mics with much larger diaphragms. Its high sensitivity produces a high signal-to-noise ratio with 8 to 10 dB of additional output level. The paintable, medical-grade, 1.6mm diameter cable resists kinks, maintains flexibility, and uses a redundant ground for enhanced shielding. The cable end is terminated with a 3-pin LEMO connector for compatibility with an array of wireless transmitters.



    Lightweight and easily concealed for use in theater, broadcast, and speech applications
    Patent-pending, dual-diaphragm design yields twice the surface area of other subminiature microphones for pristine, natural response, and robust low frequencies
    Improved off-axis consistency produces accurate reproduction regardless of vocal source position or movement
    Low self-noise of 24 dBA and wide dynamic range of 110 dB for cleaner audio production
    High sensitivity produces 8 to 10 dB of additional output level, and contributes to a high signal-to-noise ratio
    Interchangeable sweat- and moisture-resistant frequency caps prevent sweat-outs due to an invisible superhydrophobic nanoscopic coating
    Paintable 1.6mm diameter cable resists memory effect and kinks
    Dual-redundant ground in cable serves as secondary shield for longevity
    Includes three flat-response frequency caps and two presence-response frequency caps

    Shure TL46 Specs

    Microphone
    Sound Field Mono
    Operating Principle Pressure Operated
    Capsule Electret Condenser
    Polar Pattern Omnidirectional
    Performance
    Frequency Range 20 Hz to 20 kHz
    Maximum SPL 134 dB SPL
    Sensitivity -37 dBV/Pa at 1 kHz
    Dynamic Range 110 dB
    Signal-to-Noise Ratio 70 dB
    Equivalent Noise Level 24 dB A-Weighted
    Connectivity
    Output Connector Select
    Cable Length 5.5' / 1.68 m
    Power
    Operating Voltage 5 V
    Operating Current Consumption 240 µA
    Physical
    Length 0.53" / 13.5 mm
    Diameter 0.22" / 5.6 mm
    Weight 0.42 oz / 12 g

      $ 499.00
      $ 399.00
      Color:
      Connector:

      Frequently Bought Together

      Total price $ 573.99

      Product Description

      Sweat and moisture won't stop your signal when you use the cocoa Shure TwinPlex TL46 omnidirectional lavalier microphone as your transducer of choice. This ultralightweight mic boasts a patent-pending, dual-diaphragm condenser capsule with an omnidirectional polar pattern, yielding full, natural tone and consistent off-axis response along with low self-noise and wide dynamic range. Plus, the swappable frequency caps incorporate a superhydrophobic nanoscopic coating to eliminate sweat-outs and signal drops caused by perspiration.

      The TwinPlex TL46 remains easy to conceal while offering the sonic performance of mics with much larger diaphragms. Its high sensitivity produces a high signal-to-noise ratio with 8 to 10 dB of additional output level. The paintable, medical-grade, 1.6mm diameter cable resists kinks, maintains flexibility, and uses a redundant ground for enhanced shielding. The cable end is terminated with a 3-pin LEMO connector for compatibility with an array of wireless transmitters.



      Lightweight and easily concealed for use in theater, broadcast, and speech applications
      Patent-pending, dual-diaphragm design yields twice the surface area of other subminiature microphones for pristine, natural response, and robust low frequencies
      Improved off-axis consistency produces accurate reproduction regardless of vocal source position or movement
      Low self-noise of 24 dBA and wide dynamic range of 110 dB for cleaner audio production
      High sensitivity produces 8 to 10 dB of additional output level, and contributes to a high signal-to-noise ratio
      Interchangeable sweat- and moisture-resistant frequency caps prevent sweat-outs due to an invisible superhydrophobic nanoscopic coating
      Paintable 1.6mm diameter cable resists memory effect and kinks
      Dual-redundant ground in cable serves as secondary shield for longevity
      Includes three flat-response frequency caps and two presence-response frequency caps

      Shure TL46 Specs

      Microphone
      Sound Field Mono
      Operating Principle Pressure Operated
      Capsule Electret Condenser
      Polar Pattern Omnidirectional
      Performance
      Frequency Range 20 Hz to 20 kHz
      Maximum SPL 134 dB SPL
      Sensitivity -37 dBV/Pa at 1 kHz
      Dynamic Range 110 dB
      Signal-to-Noise Ratio 70 dB
      Equivalent Noise Level 24 dB A-Weighted
      Connectivity
      Output Connector Select
      Cable Length 5.5' / 1.68 m
      Power
      Operating Voltage 5 V
      Operating Current Consumption 240 µA
      Physical
      Length 0.53" / 13.5 mm
      Diameter 0.22" / 5.6 mm
      Weight 0.42 oz / 12 g
